Flexible Magnetic Stripe for Accurate PAUT Probe Scanning

Precision Alignment | Flat & Pipe Welds | Manual Scan Support

🔹 Product Overview:

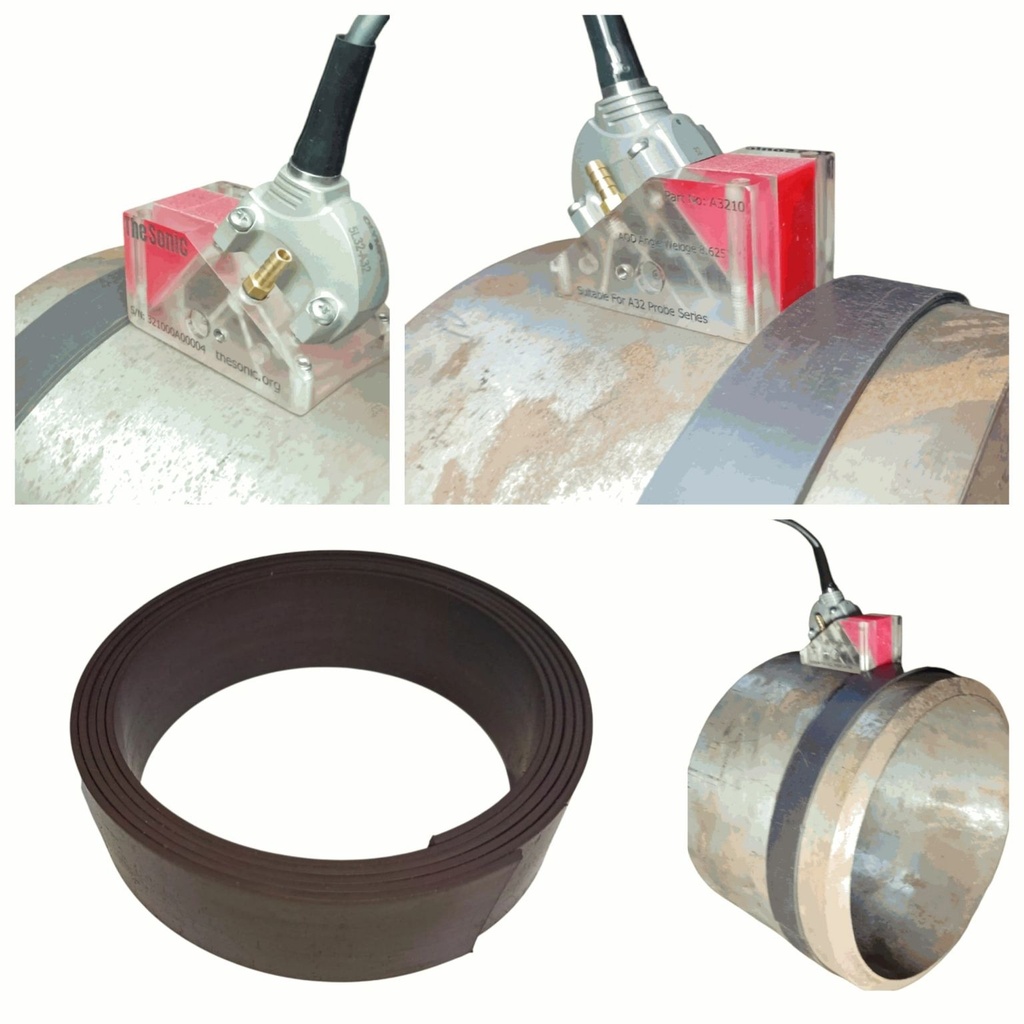

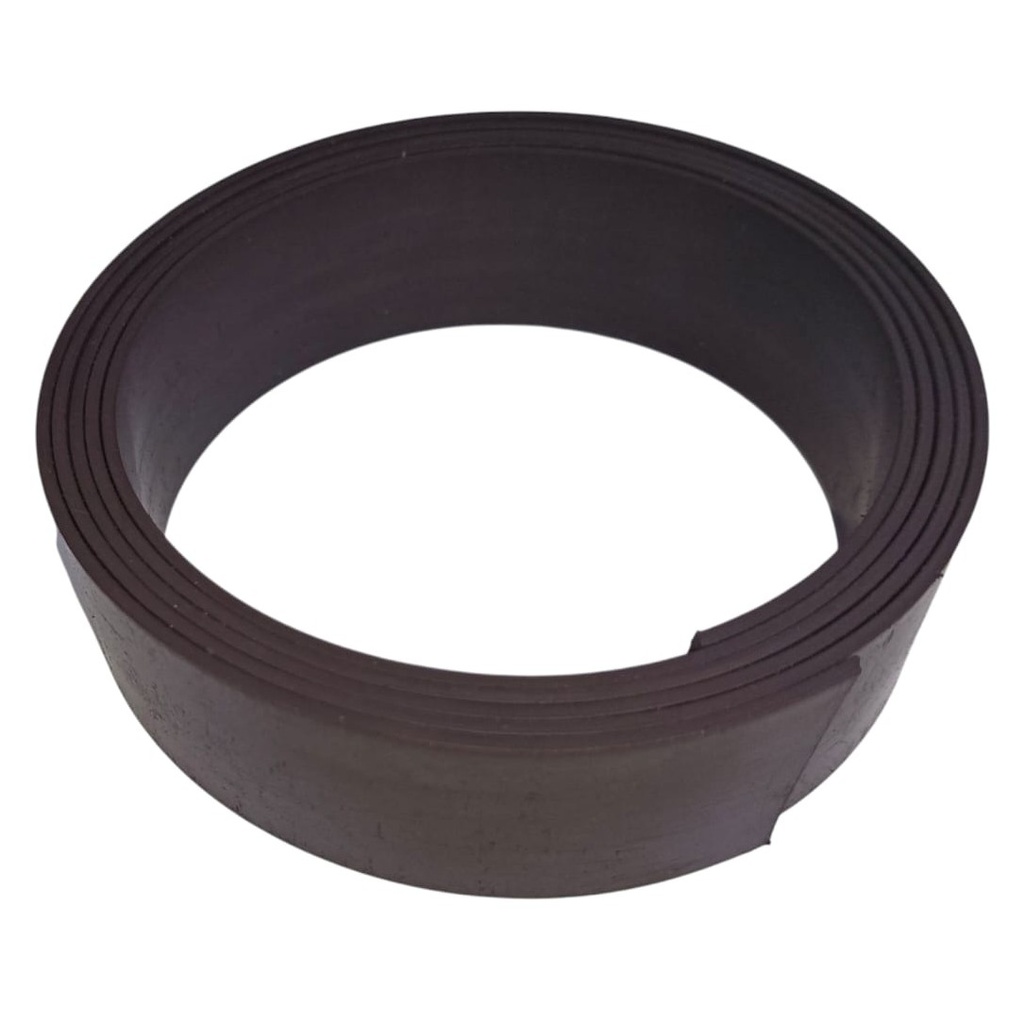

PAScanStik™ is a compact and flexible magnetic stripe tool designed specifically to aid in Phased Array Ultrasonic Testing (PAUT) probe placement during manual weld scanning. Built for flat surfaces and curved pipes, this tool offers exceptional magnetic holding strength while maintaining flexibility — allowing technicians to maintain consistent probe alignment and reduce scanning errors during field operations.

Whether you are working on longitudinal welds on flat plates or circumferential welds on pipes, PAScanStik™ ensures that your PAUT probe stays in place and follows a defined path, even under challenging inspection conditions.

Specification :

Product Name : PAScanStik™

Material: Flexible high-strength magnetic composite

Width: 25.4 mm

Thickness: 1.5 mm

Length: As per client requirement ( customizable)

Surface Compatibility 😐 Ferromagnetic surfaces (Flat & Pipe)

Operating Use ;| Manual PAUT Probe Placement

Color : Dark industrial brown (or customizable)

Key Features:

Precision Probe Guidance: Keeps the PAUT probe aligned throughout the scan path.

Strong Magnetic Hold: Prevents probe slippage on vertical or curved surfaces.

Flexible & Reusable: Easily conforms to both flat and cylindrical surfaces.

Supports Manual Scanning: Ideal for field inspections where motorized scanners aren’t practical.

Lightweight & Portable: Easy to carry, store, and deploy onsite.

Custom Lengths Available: Tailor the length based on weld size or inspection route.

Applications:

Long seam weld scanning on tanks and vessels

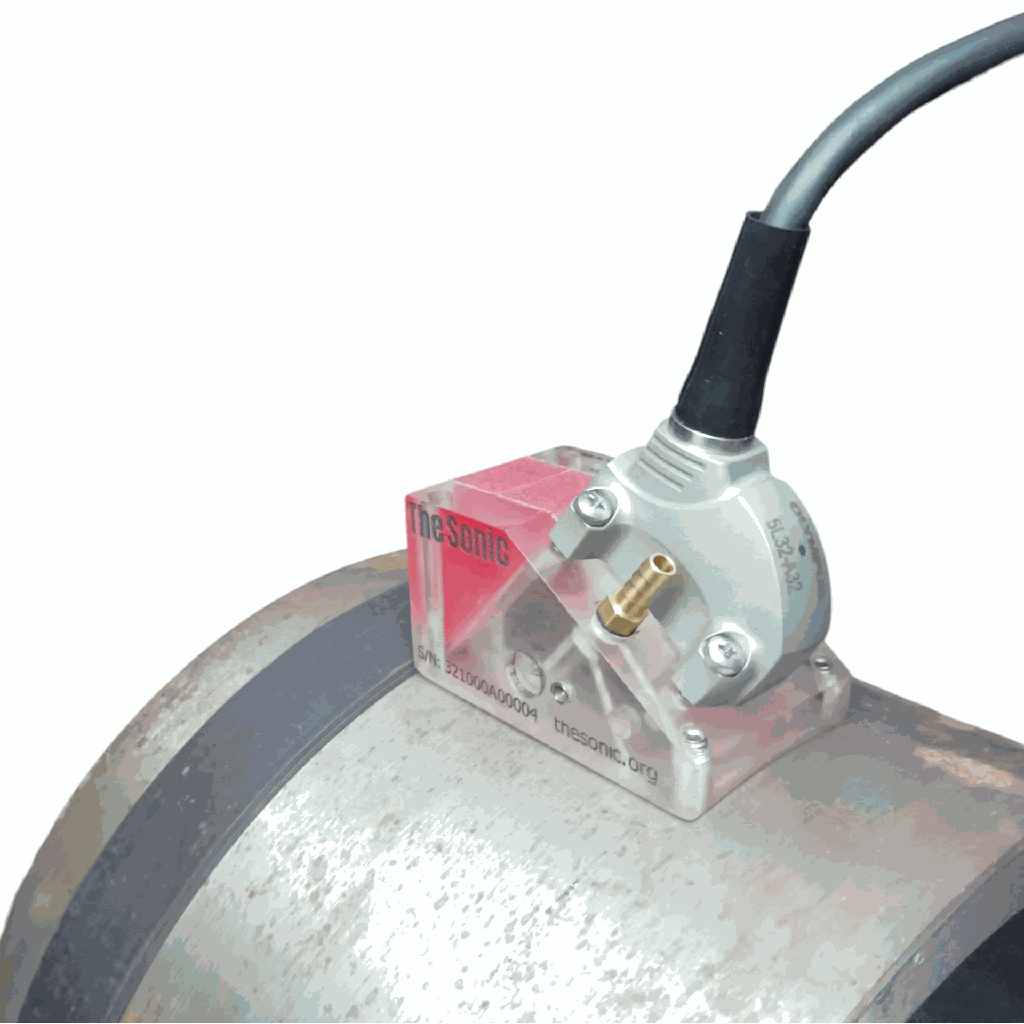

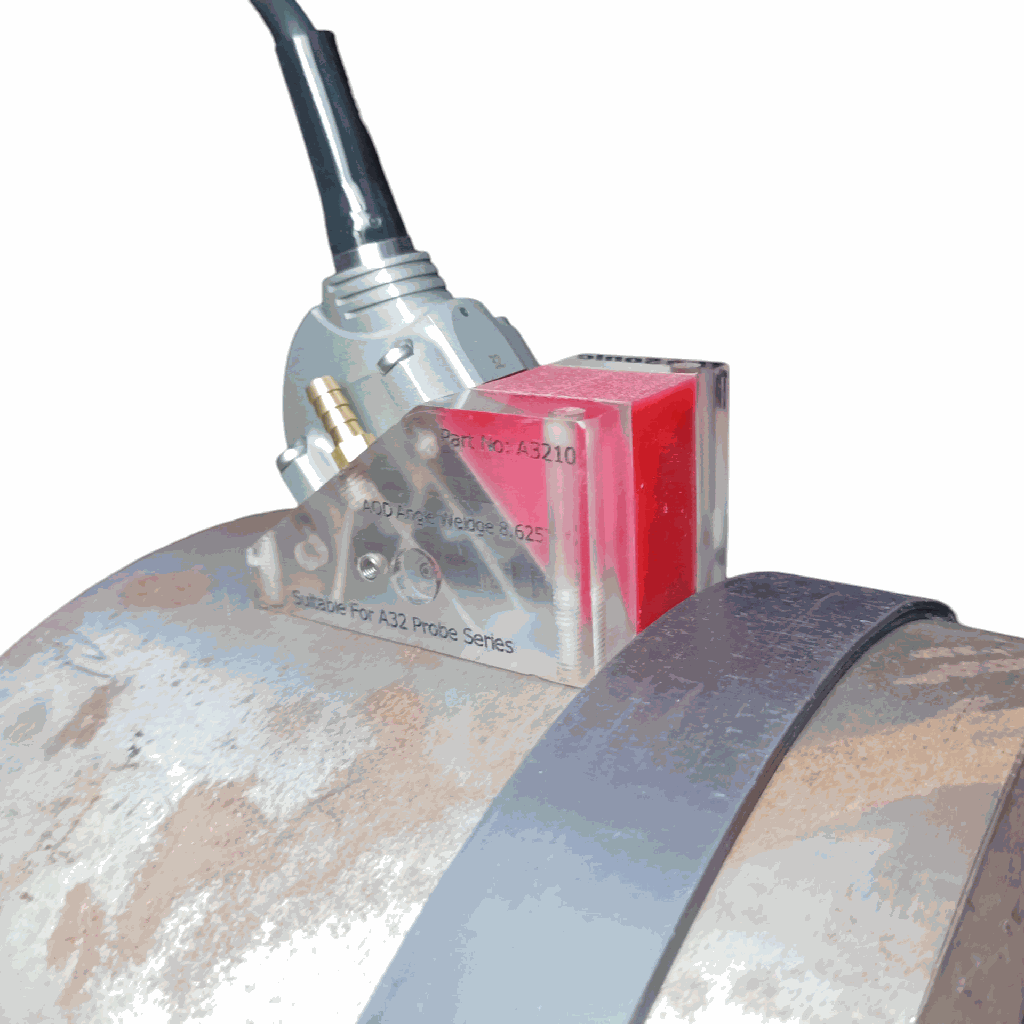

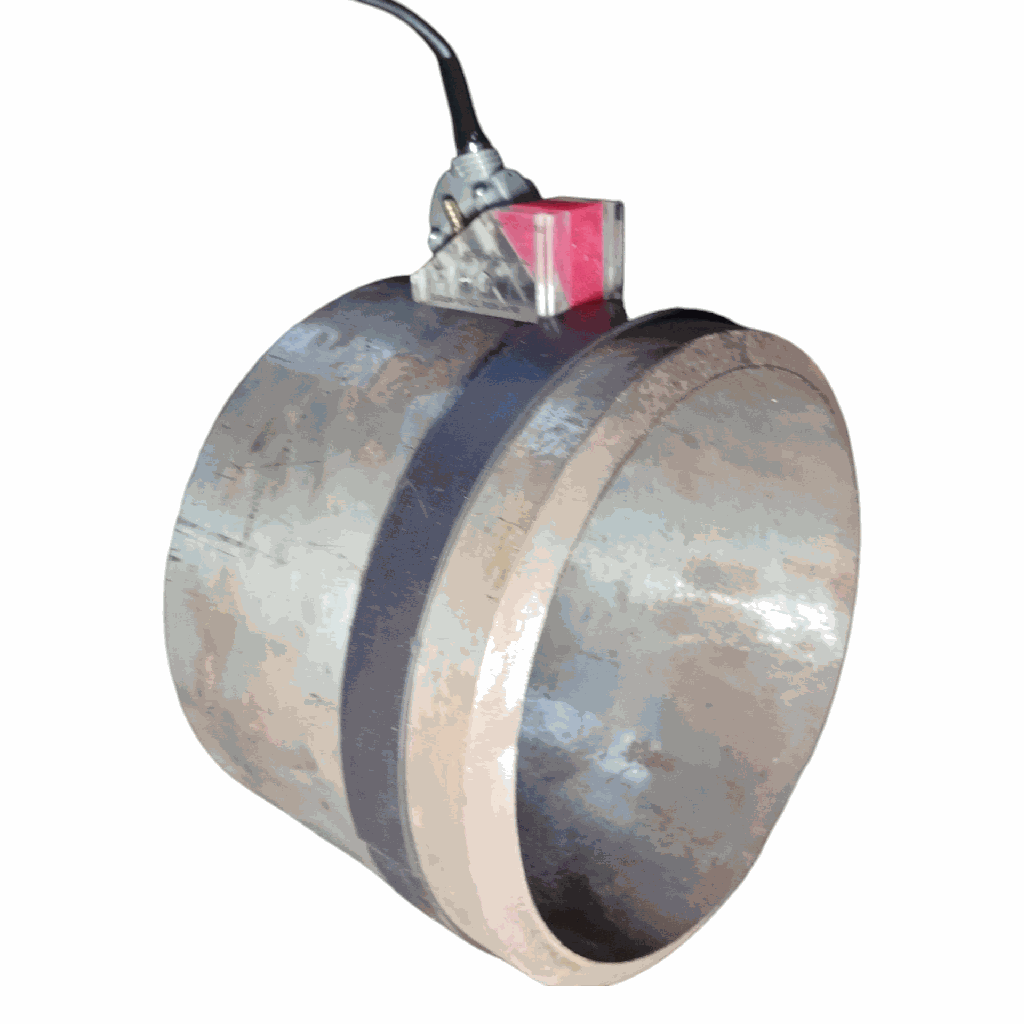

Circumferential weld scanning on pipes (small to large OD)

Field-based PAUT scanning for power plants, refineries, and offshore structures

Maintenance & shutdown inspection support

Why PAScanStik™?

Manual PAUT scanning often struggles with inconsistent hand movement, drift, or probe tilting — especially over long welds or curved surfaces. PAScanStik™ eliminates these challenges by acting as a stable track that guides the PAUT probe along a straight and repeatable path — resulting in improved image clarity, accurate weld defect detection, and increased technician efficiency.

Ordering Information:

Standard width: 25.4 mm

Standard thickness: 1.5 mm

Length options: Custom cut as per client requirement (0.5m, 1m, 1.5m, etc.)
